GIVING A LOOK AT THE WORLD
NEW! SERIE 2024
Hard shell roof top range.
The classic model has Airtex Gray, Safari or Wild Green fabric and versatile opening: this roof tent has a large rear window and can be customized in numerous ways.
Ventilation and light is excellent, without compromising privacy.
The modular nature of the openings and further features of the Columbus Variant give you the opportunity to enjoy the pleasures of outdoor life, without sacrificing the comfort of the best roof tents on the market, original Autohome models which have made the history of extreme camping.
Like all roof tents in the range, Columbus Variant is made with high-quality materials that guarantee strength and comfort.
The fiberglass shells combine the benefits of strength and lightweight design in a single material which is easy to wash and repair if damaged (which is unlikely); the AIRTEX® fabrics are highly waterproof yet breathable ensuring overnighting is dry and comfortable.
In Columbus roof tents everything contributes to excellence.
Autohome: “ A simple silhouette and a great look "
COLOUR OF FABRICS
SHELL COLOURS
FIBERGLASS 100% "GLASS RENFORCED PLASTIC" - GFK IN GERMAN
Shells are handmade by precision craftsmen, the best guarantee of quality: a quality structure, compact, pull-out, unlike ordinary plastic or similar products available on the market. The fiberglass insulates the inside from the heat and cold and can be cleaned easily (it is undamaged by aggressive cleaning agents). Strength, reliability, comfort, quality: Maggiolina roof tents are all this and more.
MODELS AND SIZES
COLUMBUS VARIANT
SMALLAerodynamic version. |
|
Art: | CVG/01 – CVC/01 – CVBS/01 Columbus Variant Small |
Sizes: | 130 x 210 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | about 56 Kg* |
Volume: | about 196 l* |
MEDIUMAerodynamic version. |
|
Art: | CVG/02 – CVC/02 – CVBS/02 Columbus Variant Medium |
Sizes: | 145 x 210 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | about 60 Kg* |
Volume: | about 220 l* |
LARGEAerodynamic version. |
|
Art: | CVG/03 – CVC/03 – CVBS/03 Columbus Variant Large |
Sizes: | 165 x 215 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | about 71 Kg* |
Volume: | about 260 l* |
X-LARGEAerodynamic version. |
|
Art: | CVG/04 – CVC/04 – CVBS/04 Columbus Variant X-Large |
Sizes: | 180 x 230 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | about 93 Kg* |
Volume: | about 300 l* |
X-LONGOptional for Small and Medium: instead of the |
THE COMPLETE RANGE COLUMBUS VARIANT Open H max 150 cm |
SMALL Aerodynamic version. Recommended for two adults. |
|
Art.: | CVG/01 – CVC/01 – CVBS/01 Columbus Variant Small |
Sizes: | 130 x 210 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | 56 Kg* |
Volume: | 196 l* |
MEDIUM Aerodynamic version. Recommended for two adults and a child. |
|
Art: | CVG/02 – CVC/02 – CVBS/02 Columbus Variant Medium |
Sizes: | 145 x 210 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | 60 Kg* |
Volume: | 220 l* |
LARGE Aerodynamic version. Recommended for two adults and two children |
|
Art.: | CVG/03 – CVC/03 – CVBS/03 Columbus Variant Large |
Sizes: | 165 x 215 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | 71 Kg* |
Volume: | 260 l* |
X-LARGE Aerodynamic version. Recommended for two adults and two children |
|
Art.: | CVG/04 – CVC/04 – CVBS/04 Columbus Variant X-Large |
Sizes: | 180 x 230 cm |
Closed h: | 30 cm |
Open h: | 150 cm |
Weight: | 93 Kg* |
Volume: | 300 l* |
X-LONG
On request, Maggiolina Grand Tour in sizes Small, Medium and Large are available in longer versions: L= 230 cm instead of 210 cm |
THE COMPLETE RANGE COLUMBUS VARIANT Aperta H max 150 cm |
BACKSTAGE
FACE TO FACE WITH AUTOHOME® AND ITS PRODUCTS
COMFORT WITHOUT COMPROMISE
Sizes, volumes and internal capacity of the various models are all different and some of them also allow to fit additional bars on the shell useful to transport surf boards, kajaks and other tools.
All the shells have the same shape and design: a fluid, clean, aerodynamic line and esthetically perfect also on small vehicles.
COMFORT WITHOUT COMPROMISE
Sizes, volumes and internal capacity of the various models are all different and some of them also allow to fit additional bars on the shell useful to transport surf boards, kajaks and other tools.
All the shells have the same shape and design: a fluid, clean, aerodynamic line and esthetically perfect also on small vehicles.

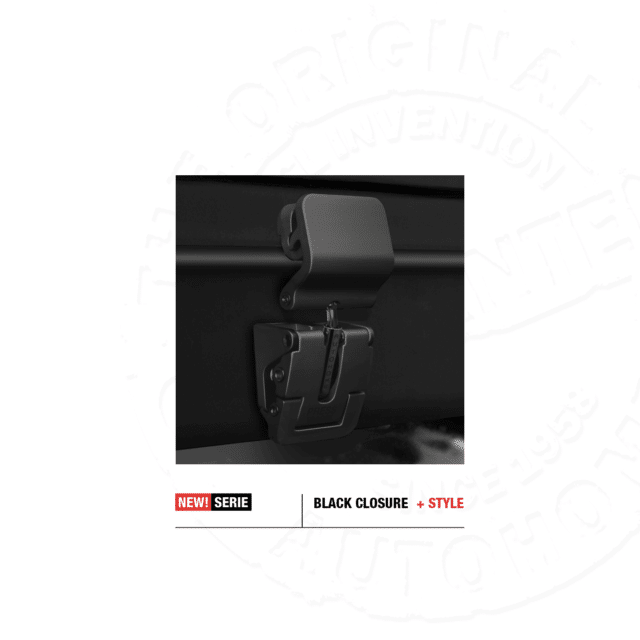

All Columbus models open in an instant. By releasing the catch at the back, the tent will open thanks to two special gas springs (just like those on car tailgates) which lift the top whilst keeping the fabric tensioned.
Closing it is just as simple; you are then ready to set off again in total safety.
WITH THE TENT OPEN, THE REAR APERTURE IS VERY LARGE AND HAS 6 VARIANTS.
Example 1
100% open.
Example 2
100% opening with mosquito netting closed.
Example 3
60% door upper opened with mosquito netting closed,
giving 40% darkening and privacy inside the tent.
Example 4
40% door upper opened with mosquito netting closed,
giving 60% darkening and privacy inside the tent.
Example 5
20% upper door opened with mosquito netting closed giving 80%
darkening and privacy inside the tent
Example 6
100% closed.
1 - Columbus provides extra storage area whilst travelling. The aerodynamic design with its ample storage capacity allows you to carry sporting equipment, travel accessories, bed linen, etc and keep them safeguarded from the weather.
2 - Two internal safety locks to prevent closure during gusts of wind are fitted as standard (when locks are inserted, the tent does not close).
3 - Available with: 2 roomy storage pockets, one per side.
4 - Arched door fitted on each side complete with roll up, roll down mosquito nets. Fitted with circular zips, they can easily be changed into windows.
5 - Large model is usually equipped of a standard opening on the back with dimming device (cm 90 x 90); the opening is protected by a mosquito net, allowing the access to back side and more ventilation at the same time.
6 - 7 - The aluminium ladder is extremely compact, foldable for travel or pull-out during the night.
8 - Overhead light with 3 super bright Leds, including 3x1,5V batteries.
9 - Nécessaires storage: a new solution applied to the inner ceiling, equipped with closeable pockets
10 - Elastic tensioning straps inside the tent help to fold the fabric into place when closing theshell, particularly useful on high vehicles.
11 - 12 - The small and medium version is configured for roof bars using ‘Kit Fix’ Art. K/F (not supplied) suitable for transporting sporting or camping equipment. The model Columbus Variant Small and Medium X-Long is not equipped for the application of Kit Fix. > Instructions
HIGH TECH TEXTILES
Condensation is a natural phenomenon in a campsite tent. When the outside temperature falls below the temperature inside the tent, the moisture in the air condenses on the inside walls of the tent in the form of water droplets. This usually happens in the evening, at night or at high altitude when the fabric is coldest. On the basis of many years of experience with the best materials, Autohome has chosen high-quality Airtex® for its Columbus, Columbus Variant, Columbus Carbon Fiber e Columbus Black Edition models. Airtex® is extremely versatile, is waterproof and strong, and transmits water vapour rapidly, removing it from inside the tent. So condensation is no longer a problem.
THE TRANSMISSION OF WATER VAPOUR
Transmission speed: 440g/mq/24hrs
Airtex® is a fabric that does not trap water vapour inside the tent but removes it naturally. This is the great difference with plasticized polyester, which is airtight and therefore creates moisture and condensation.
ARTISAN QUALITY IN MASSPRODUCTION
As for most of the versions made by Autohome, the shells are made of fiberglass.
Fiberglass is a particular fabric fiber interweaved and soaked in resinous liquid substances or polyester.
This material is also known as GRP, glass reinforced plastic (GFK in German).
The above mentioned really expensive liquid resins, once adequately mixed with catalyzing or accelerating additives, are manually spread with hairy roller brushes on a glassy fabric previously lay on open stamps.
In this way, while solidifying, the liquid resin incorporates the glassy fibers and creates the fiberglass.
It is a laborious process by hand but it is surely worthy the quality of the result.
Fiberglass is very widespread within the building industry and used especially for roofs and other industrial and urban coverings.
It does not get warm under the sun and keeps any closed environment insulated from heat and cold, an indispensable feature for any roof tent.
Thanks to fiberglass, Autohome’s shells guarantee excellent quality not only in regard to their endurance and sound proof insulation, but also in terms of lightness and easiness to repair (avoiding this way the high costs of substitution of entire shells, usual in the case of Asian manufacturing that commonly uses simple plastic).
The quality of fiberglass is so great that this material is also used in the manufacturing of boats and cars, especially for bodyworks and hulls that need rigidity and stability throughout time… the best campers, for example, are the ones with single body made with fiberglass and therefore easily repairable (bodies made with ABS are indeed not very diffused anymore because of their difficult reparation processes).
Thanks to its excellent qualities of lightness, robustness and resistance to decompression, fiberglass is also used for windmill blades and within the aeronautical and aerospace industry.
Autohome’s shells are designed and manufactured with the best existent material today.
No presumption of travelling to the moon (for the time being…).
FIBREGLASS ADVANTAGES
MATERIAL COMPARISON TABLE
SPECIFIC WEIGHT g/cm³ |
TENSILE STRENGTH MPa |
ELASTIC MODULUS GPa |
COEF. OF THERMAL EXPANSION K¯1 |
COEF. OF THERMAL TERMICA W/mK |
|
---|---|---|---|---|---|
FIBREGLASS | 1,5 | 400 | 26 | 11 x 10¯6 | 0,35 |
WOOD | 0,7 | 250 | 12 | 14 x 10¯6 | 0,1 |
ALUMINIUM | 2,7 | 80 | 70 | 23 x 10¯6 | 170 |
STEEL | 7,8 | 400 | 210 | 12 x 10¯6 | 40 |
PLASTIC | 1,8 | 70 | 3 | 85 x 10¯6 | 0,1 |
ANTI-CONDENSATION VENTILATED ROOF
Loft and attic ceilings inspired our staff to give Columbus a false ceiling comprising an air cushion for extra insulation, sound and heatproofing, creating a safe, healthy and silent environment even in the rain.
This feature is provided for all Autohome shell tents.
There are three categories in the range: Columbus, Columbus Variant and Columbus Carbon Fiber.
ANTI-CONDENSATION VENTILATED ROOF
Loft and attic ceilings inspired our staff to give Columbus a false ceiling comprising an air cushion for extra insulation, sound and heatproofing, creating a safe, healthy and silent environment even in the rain.
This feature is provided for all Autohome shell tents.
There are three categories in the range: Columbus, Columbus Variant and Columbus Carbon Fiber.
ROOF INSULATION
Roof insulation with air gap is an exclusive Autohome feature.
The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.
OUTSIDE YOU CAN’T SEE INSIDE, INSIDE YOU CAN SEE OUTSIDE
Dim. 0,5 x 0,7 mm [13,6×11/cm]
The mosquito net has an extraordinary blackout feature that provides more privacy to the occupants of the tent. Outside you can’t see inside, inside you can see outside.
The mosquito net is very thick.
It is incomparable to the standard and it features an innovative weave so fine that it does not allow the passage of any kind of insects. Quiet nights in marshy areas, near watercourses, on the banks of rivers or in areas where the presence of microscopic mosquitoes is very high.
COLUMBUS VARIANT TECHNICAL DESIGNS
V= with the tent closed, this indicates the capacity (volume) of the upper shell, in litres.
The upper shell contains 2,3 or 4 pillows, according to the model, and other night-time accessories or personal effects.
For example, a rucksack, blankets, a beauty-case, or the ladder, the changing room, winter hood or other travel accessories can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.
When choosing a roof tent, the shell height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The overall length of 210 cm provides optimum comfort and room for rucksacks or large blankets. If you are tall, the X-LONG model is the best choice.
Note: the dimensions indicated refer to the size of the shells.
Consider that, the shells being made with handcraft techniques in different moulds and configurations (Maggiolina / Columbus / Airtop), their length and width can vary +/- 30 mm.
The width (SMALL /MEDIUM /LARGE) is according to the number of occupants

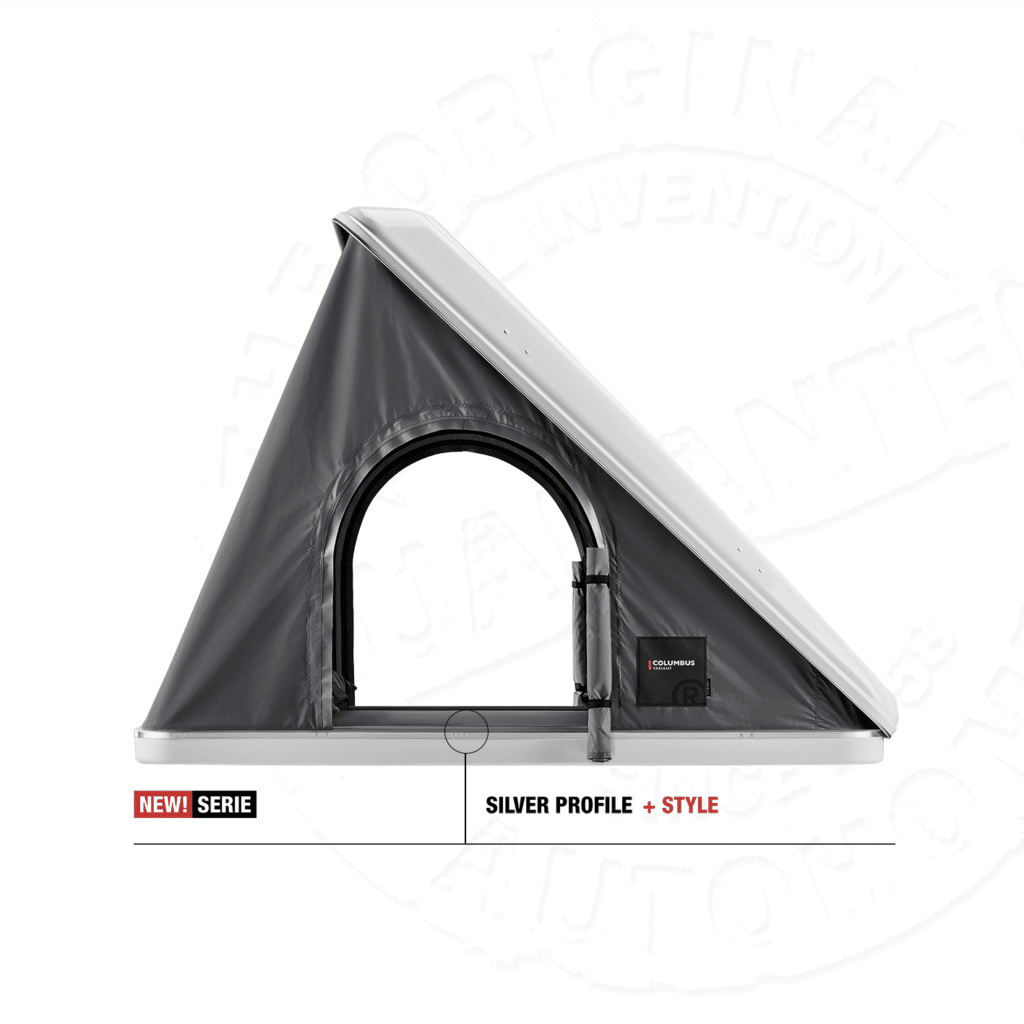

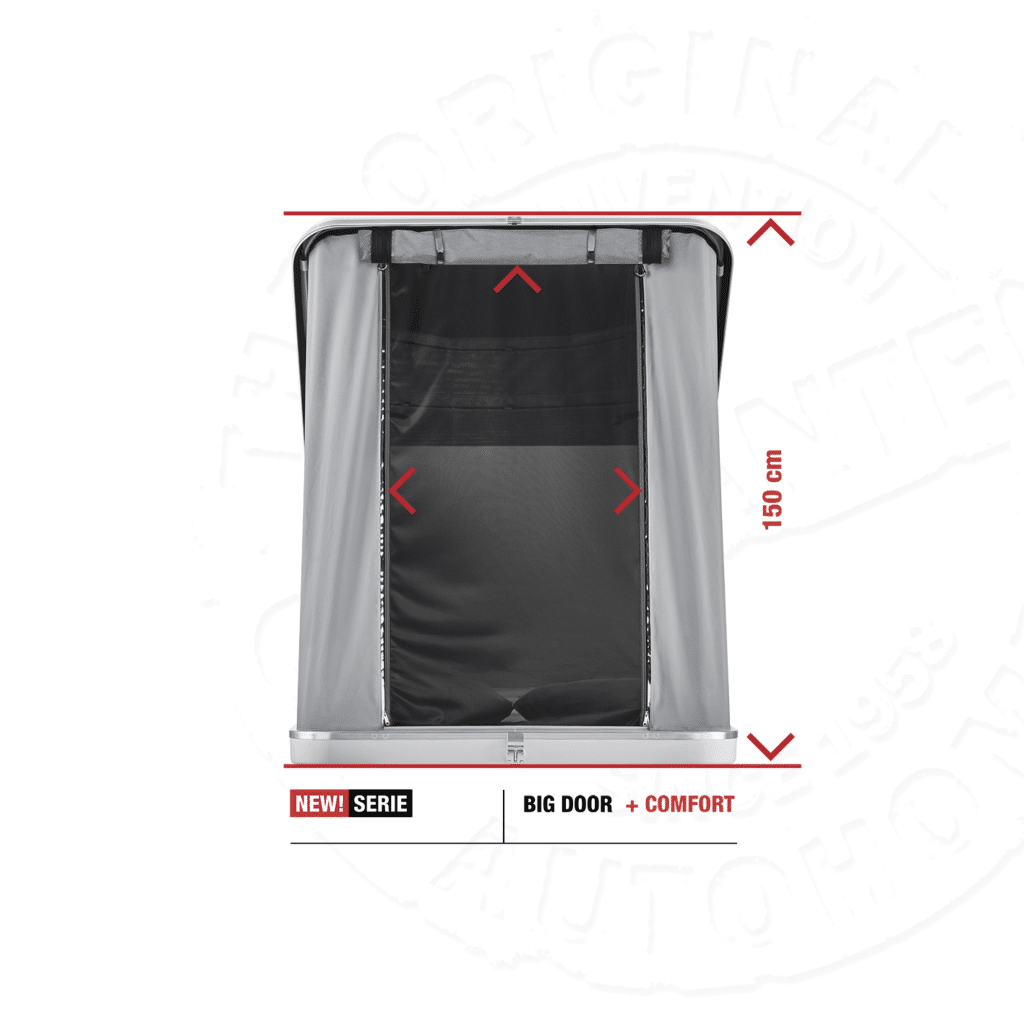

The door is as wide as possible, 75 cm. The doors become large windows.
The size of the windows can be adjusted for optimum visibility. Even when the traditional version has the windows open (in a rough half circle) privacy is not compromised.
The rear door has adjustable openings as desired.
WING : a further protection to enjoy your stay in the tent even in the event of bad weather. All openings, the side entrances and the tailgate, are covered and can remain open when it rains.
Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied.
DESIGN MADE IN ITALY
Design Made in Italy means quality, originality and style. A production process of every single roof top tent is based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition. The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.
DESIGN MADE IN ITALY
Design Made in Italy means quality, originality and style. A production process of every single roof top tent is based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition. The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.
A GREAT CHOICE OF ACCESSORIES
A vast range of accessories are offered for your maximum comfort and additional needs.
They are extremely easy and quick to assemble and self-contained.
Each of the Columbus models can be supplied with any of the following accessories:
• Verandah, being self-contained, it allows you to move your car whenever desired.
• Winter hood additional protection against humidity, cold and wind.
• Awning, a useful accessory for short breaks.
• Feet to place Columbus on the floor if desired.
Other accessories: roof rack for any kind of vehicle; space saving kit designed to store your AUTOHOME on your garage ceiling, bike rack etc.
INDIPENDENT VERANDAH
For Cars Art. C/03A
Self-contained Verandah (200 x 210 x 245 cm high approx). Fitted with openings on all sides, it is very versatile and useful. Plenty of space for storage, cooking, eating and additional sleeping area.
INDIPENDENT VERANDAH
(FOR CARS)
Art. C/03A
Self-contained Verandah (200 x 210 x 245 cm high approx). Fitted with openings on all sides, it is very versatile and useful. Plenty of space for storage, cooking, eating and additional sleeping area.
FEET
Art. C/06A
Columbus can also be placed on the floor, transferring it into a conventional tent. Approximately 25 cm high the feet allow you to keep a safe distance from humidity, water and insects. Foldable and clutter free, they can remain attached at the base while in transit.
FEET
Art. C/06A
Columbus can also be placed on the floor, transferring it into a conventional tent. Approximately 25 cm high the feet allow you to keep a safe distance from humidity, water and insects. Foldable and clutter free, they can remain attached at the base while in transit. Foldable and adjustable, these supports can be fitted easily where required. Useful in campsites or residential areas which do not allow vehicles entry at night.
WINTER HOOD
Art. C/04A
The Winter hood is extremely easy to use thanks to the Velcro fastening. One half is attached under the Columbus roof, the other half on the Winter hood. The Winter hood can be attached and remain in situ, whilst travelling. Columbus winter hood has one door (driver side) and one window (passenger side).
WINTER HOOD
Art. C/04A
The Winter hood is extremely easy to use thanks to the Velcro fastening. One half is attached under the Columbus roof, the other half on the Winter hood. The Winter hood can be attached and remain in situ, whilst travelling.
AWNING
For cars (Art. C/05A-1) for vans and 4 wheels drives (Art. C/05A-2) Variable sizes according to the height of the car: width of the roof 150 cm, depth 100/200 cm. The Columbus Awning is suitable only for Tents produced since 2017.
AWNING
for cars (Art. C/05A-1)
AWNING 4X4
for vans and 4 wheels drives (Art. C/05A-2)
A quick protection area that allows more privacy. Variable sizes according to the height of the car: width of the roof 150 cm, depth 100/200 cm.
The Columbus Awning is suitable only for Tents produced since 2017.
AWNING ROLLING TOP
Art. R/TOP - S cm 180x180 Art. R/TOP - M cm 220x225
Confirming the distinctive features of the Columbus range by Autohome, Rolling top, specifically designed for the range, is easy to fit and provides extra shelter and space for even more freedom on holiday, whatever the weather.AWNING ROLLING TOP
Art. R/TOP - S cm 180x180 Art. R/TOP - M cm 220x225
Confirming the distinctive features of the Columbus range by Autohome, Rolling top, specifically designed for the range, is easy to fit and provides extra shelter and space for even more freedom on holiday, whatever the weather.UNIVERSAL SYSTEM
UNIVERSAL SYSTEM
The exclusive Autohome security system allows all tents to be used on any vehicle: small cars, off-road vehicles, station-wagons, MPV’s (or people carriers), camper vans, and pick-up trucks... A universal, quick attachment system, allows you to position the tent safely in any position, with no risk of damage or modifications to the body of the vehicle. Various fixing kits are available to suit.
1st Advantage:
All tents are fully independent for easy installation on the car roof.
2nd Advantage:
The C-shaped steel rails integrated into the bases of all Autohome models strengthen the structure and make it possible to fix the tent to the roof bars by means of special clamps.
3rd Advantage:
Just two people (standing beside the car) can easily lift the tent and position it on the roof bars without risk to the bodywork.
4th Advantage:
The standard clamps slide along the C-shaped rails to fix the tent in the desired position. This position varies depending on the type of car, to be used as a carryall or for best appearance.
The tent bases must not be drilled for fixing onto the roof bars.
No holes are to be drilled in the roof bars to secure the tent. This operation is prohibited by current safety regulations. It is not permitted to make changes to the roof rack.
4 clamps are provided as standard for simple, easy mounting according to the rules.
Universal System Autohome is a mounting system according to the standards, certified by T.V - ID: 0000024461. Beware of imitations.
An example of a roof rack for motor cars without water channels.
Connection for off-road vehicles or motor cars with water channels.
Attachment bars for motor cars with fitted rails.
Special Order: Roof Bars or Expedition Roof Racks available in Steel or Aluminium.
CLAMPS SIZE AVAILABLE
AUTOHOME DRIVE CALM AND SLEEP PEACEFULLY
Safety is priceless for us at Autohome and for this reason our research and development centre has always worked on two fronts: first to guarantee "no problem journeys" and second to ensure "peaceful nights".
NO PROBLEM JOURNEYS
The roof tent is a load subject to dynamic stress when driving on the road and like any other load outside the vehicle must be firmly anchored and give a guarantee of safety, in order not to become a hazard. Autohome roof tents are made of the best materials to be solid and robust, able to withstand the stresses of the asphalt and the aerodynamic drag of the wind. They passed the stringent certification tests of the product and materials to travel years and years without problems.
AUTOHOME QUALITY TENTS CERTIFIED ALSO BY TÜV
PEACEFUL NIGHTS
The same attention we paid to dynamic security was also given to the quality of sleep. First choice materials, accurate finishes, attention to details mean that in the Autohome tent you sleep in a real bed, insulated from the heat and cold and soundproofed from rain noise.
WARNING
There are roof tents on the market that do not have any real product certification. Beware of certifications such as ISO 9001 that some sellers advertise, because they concern the company organization and are not at all a guarantee of quality and security of the tent you are going to buy. On the contrary, Autohome roof tents have passed stringent quality tests of the materials used, carried out in the laboratories of qualified Bodies, including the German TÜV.AUTOHOME DRIVE CALM AND SLEEP PEACEFULLY
Safety is priceless for us at Autohome and for this reason our research and development centre has always worked on two fronts: first to guarantee "no problem journeys" and second to ensure "peaceful nights".
NO PROBLEM JOURNEYS
The roof tent is a load subject to dynamic stress when driving on the road and like any other load outside the vehicle must be firmly anchored and give a guarantee of safety, in order not to become a hazard. Autohome roof tents are made of the best materials to be solid and robust, able to withstand the stresses of the asphalt and the aerodynamic drag of the wind. They passed the stringent certification tests of the product and materials to travel years and years without problems.
AUTOHOME QUALITY TENTS CERTIFIED ALSO BY TÜV
PEACEFUL NIGHTS
The same attention we paid to dynamic security was also given to the quality of sleep. First choice materials, accurate finishes, attention to details mean that in the Autohome tent you sleep in a real bed, insulated from the heat and cold and soundproofed from rain noise.
WARNING
There are roof tents on the market that do not have any real product certification. Beware of certifications such as ISO 9001 that some sellers advertise, because they concern the company organization and are not at all a guarantee of quality and security of the tent you are going to buy. On the contrary, Autohome roof tents have passed stringent quality tests of the materials used, carried out in the laboratories of qualified Bodies, including the German TÜV.VIEW 360°
Look "from every point of view" at the original Autohome product you want to learn more about. Make the design - born from great aesthetic sensitivity and care even in the smallest details - rotate before your eyes. Observe how the style translates into reliability and durability and discover the reasons that continue to make Autohome "the excellence" in its sector.
